broken pin

Forum for Discussing Mach3/4 related issues

broken pin

Postby Boob843 » Tue Feb 11, 2020 10:37 pm

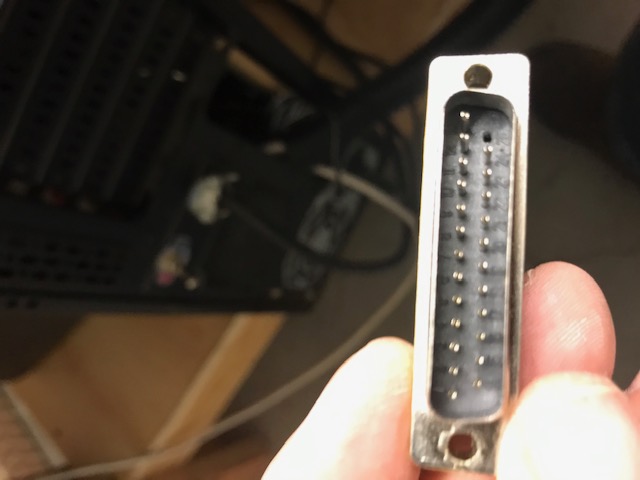

started getting more than a few "check connection errors" & "check connection and restart mach 3 errors" do you think this ground pin is a problem. controller cabinet

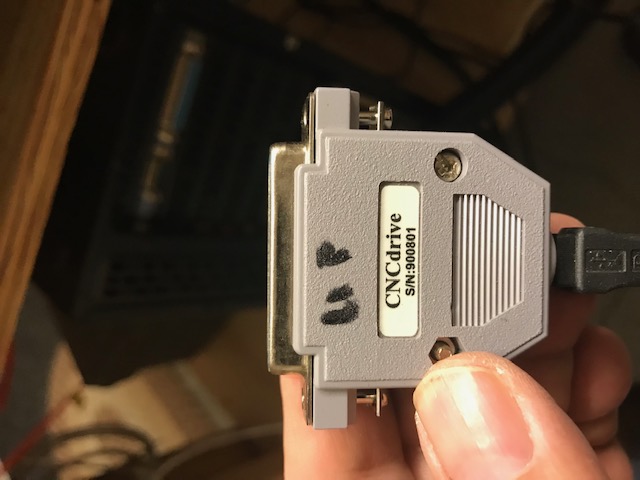

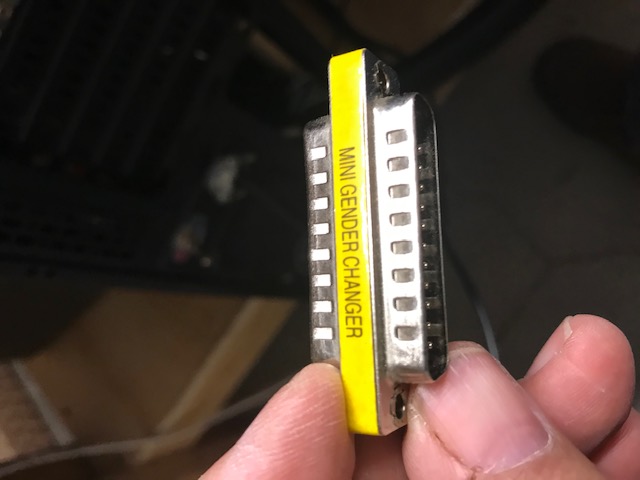

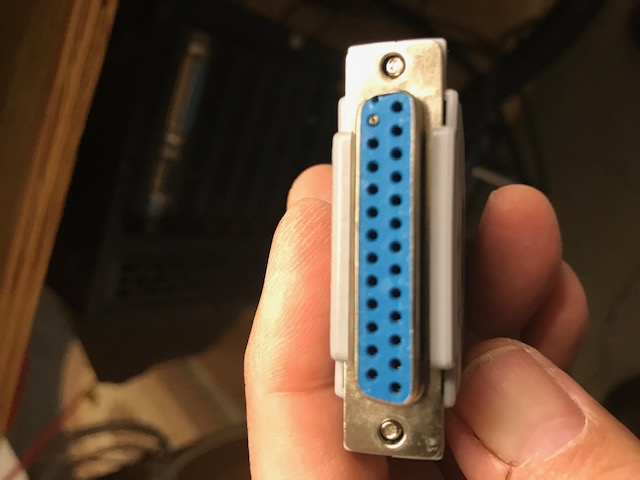

is separated from machine vibrations. posted some photos of the uc100 and the gender changer. always stops in the middle of a job
Attachments
gender changer
uc100sn
gender changer
uc100
Boob843

Posts: 3
Joined: Tue Feb 11, 2020 10:20 pm

Re: broken pin

Postby cncdrive » Tue Feb 11, 2020 10:59 pm

If it is a GND pin should be no problem, because all the 18 to 25 pins are the same ground pins, so the ground connection should be still fine.
Communication error is usually due to noise problems.
cncdrive
Site Admin

Posts: 3213
Joined: Tue Aug 12, 2014 11:17 pm

Re: broken pin

Postby Boob843 » Tue Feb 11, 2020 11:04 pm

thanks i have read a few older posts and im thinking a noise problem also. from what i can tell it is a ground pin
Boob843

Posts: 3
Joined: Tue Feb 11, 2020 10:20 pm

Re: broken pin

Postby cncdrive » Tue Feb 11, 2020 11:07 pm

You can try to place a thick (possibly >=0.5mm^2) and as short as possible single wire between the PC chassis (GND) and the UC100 GND (e.g. one of the 2 screws on the side of the UC100).
That would make a lower impedance ground connection which usually elliminates the differential noise which causing the communication issues.
cncdrive
Site Admin

Posts: 3213
Joined: Tue Aug 12, 2014 11:17 pm

Re: broken pin

Postby Boob843 » Wed Feb 12, 2020 9:55 pm

thanks for that bit of info, i am going to do that any noise reduction helps.
Boob843

Posts: 3
Joined: Tue Feb 11, 2020 10:20 pm
