CNC test / prototype macro testing boards

Postby Robertspark » Sat Mar 23, 2019 12:52 pm

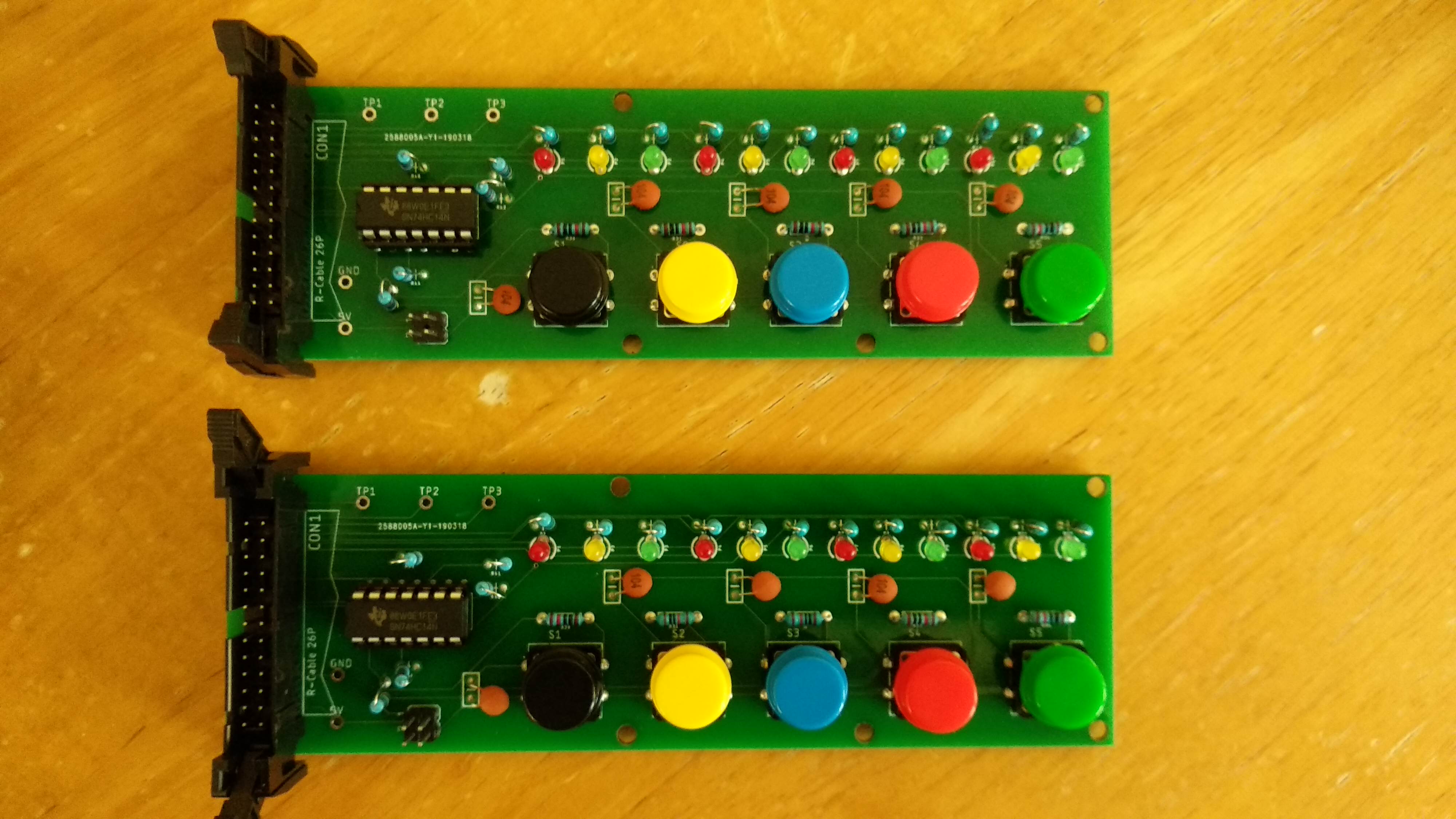

I have a spare uc400eth and given I spend evenings doing macros wizards and the occasional plugin, I've been dabbling with the thought of making a lpt test board / emulator, hence this is what I came up with.



PCBs are so cheap to have manufactured now I can't see the point in milling them any more.

Like I design most of my PCBs given you end up with more boards than you may need, I try to design the multi purpose .... Sometimes this means I make them mirrored so I can install components both sides of the PCB... Like I did with a steering wheel that had button controls and paddle shifters..... And in this case I designed the boards with jumpers so that the buttons can be set as active high or active low to emulate no or NC switches and inputs.

There are also a couple of dedicated test points which I'm awaiting some loops to install in so I can connect oscilloscope probes to or frequencies counters etc and made the programming of macros, wizards and plugins a little more easy to do sat away from the machine or away from someone you may be trying to help.

Presently trying to help someone with an ATC that uses a Geneva drive and a single rotation pule index per slot and another per ATC revolution that uses the constructor macro to home the ATC and does various other checks and will move the ATC in the shortest direction to the required tool. I'll post it in the toolbox when done.
Rob
Einstein ― “If you can't explain it to a six year old, you don't understand it yourself”
...working my way through the 1000+ ways things don't work to find the one that does
UC400eth, UC300eth, UCCNC v1.2110, Neuron Lite
UCCNC v1.2110 Macro Manual
Robertspark

Posts: 1492
Joined: Sat Sep 03, 2016 4:27 pm
Location: Nr Liverpool, England

Re: CNC test / prototype macro testing boards

Postby Tweakie.CNC » Sat Aug 03, 2019 5:43 am

Off topic but excellent work with the UCCNC v1.2110 Macro Manual Rob (very nice pcb's too ;) ).
User avatar
Tweakie.CNC

Posts: 40
Joined: Wed Jul 31, 2019 7:58 am
Location: London UK

Re: CNC test / prototype macro testing boards

Postby Robertspark » Sat Aug 03, 2019 8:40 am

thanks Tweakie, welcome to the uccnc forum.... no chance of you being tempted away from mach3? haha
Rob
Einstein ― “If you can't explain it to a six year old, you don't understand it yourself”
...working my way through the 1000+ ways things don't work to find the one that does
UC400eth, UC300eth, UCCNC v1.2110, Neuron Lite
UCCNC v1.2110 Macro Manual
Robertspark

Posts: 1492
Joined: Sat Sep 03, 2016 4:27 pm
Location: Nr Liverpool, England

Re: CNC test / prototype macro testing boards

Postby Tweakie.CNC » Sat Aug 03, 2019 8:50 am

Robertspark wrote:thanks Tweakie, welcome to the uccnc forum.... no chance of you being tempted away from mach3? haha


Thanks Rob.
UCCNC - maybe, one day - I already have a UC400 just sitting in a box waiting to be set free :lol:
User avatar
Tweakie.CNC

Posts: 40
Joined: Wed Jul 31, 2019 7:58 am
Location: London UK

Re: CNC test / prototype macro testing boards

Postby Robertspark » Sat Aug 03, 2019 1:03 pm

you can always set it free with me/m4 too

just would be nice to have someone with such long term laser experience providing comment.

still nice to see you over here
Rob
Einstein ― “If you can't explain it to a six year old, you don't understand it yourself”
...working my way through the 1000+ ways things don't work to find the one that does
UC400eth, UC300eth, UCCNC v1.2110, Neuron Lite
UCCNC v1.2110 Macro Manual
Robertspark

Posts: 1492
Joined: Sat Sep 03, 2016 4:27 pm
Location: Nr Liverpool, England

Re: CNC test / prototype macro testing boards

Postby Battwell » Mon Aug 05, 2019 8:55 am

are you selling the boards rob? i get fed up dabbing bits of wire around at my desk.
ps ive already done working geneva drive macro with one slot/rev. and shortest distance rotation.
tip. dont have it posting status messages it messes up the timing! (that drove me nuts)
Uc300eth on router and mill
If they say it can't be done- I find a way!
Battwell

Posts: 504
Joined: Sun Sep 25, 2016 7:39 pm
Location: South Wales. Uk
